Hardcut Limiter is a professional ECU tuning solution used to enable hardcut rev limiter, pops and bangs (crackle map), and launch control features in modern diesel and petrol engines. This tool is widely used by tuners to enhance vehicle sound, performance, and driving experience.

Hardcut Limiter and Pops and Bangs software allows modification of ECU parameters responsible for fuel cut, ignition timing, and injection behavior to create aggressive limiter sound and exhaust crackles. It is commonly used in chiptuning workshops and by ECU calibration specialists.

Based on feedback from tuning forums and professional communities, these solutions are widely used for Stage 2 / Stage 3 builds where aggressive sound and launch behavior are required.

The software works with ECU dump files (BIN) and does not connect directly to the vehicle.

Hardcut Limiter and Pops and Bangs Features

Hardcut Limiter includes a range of tuning functions used in ECU remapping:

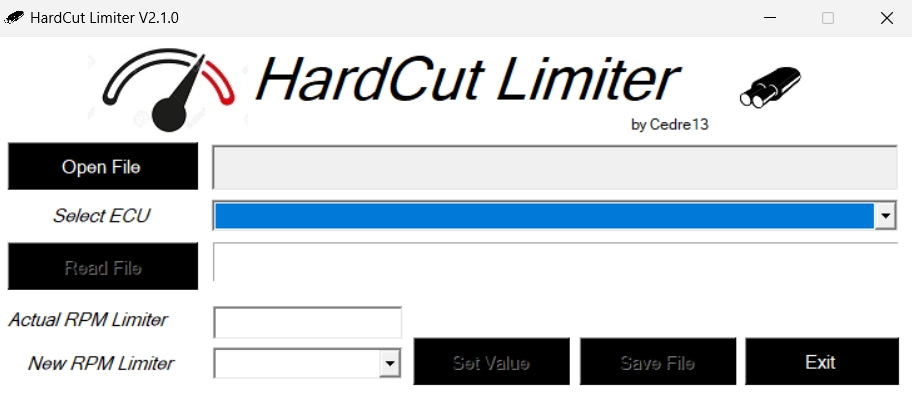

• Hardcut rev limiter (RPM limiter modification)

• Pops and bangs / crackle map activation

• Launch control configuration (fixed RPM launch)

• Fuel cut and ignition delay tuning

• Exhaust sound enhancement

• Torque limiter adjustments

• Compatible with diesel and petrol ECUs

• Automatic and manual solution options

These features allow creating aggressive exhaust sounds and performance-oriented behavior commonly used in motorsport and performance builds.

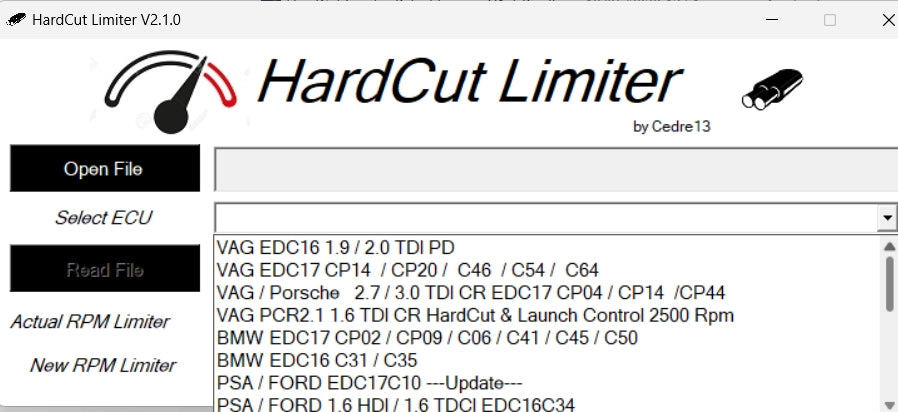

Supported ECUs

The software supports a wide range of ECUs used in VAG, BMW, PSA, Mercedes and other vehicles:

VAG EDC16 1.9 / 2.0 TDI PD

VAG EDC17 CP14 / CP20 / C46 / C54 / C64

VAG / Porsche 2.7 / 3.0 TDI CR – EDC17 CP04 / CP14 / CP44

VAG PCR2.1 – 1.6 TDI CR (Hardcut & Launch Control 2500 RPM)

VAG Delphi DCM 3.7 (1.2 TDI)

VAG Siemens / Continental PPD / PCR1

VAG EDC16 2.7 / 3.0 TDI CR

VAG EDC17 U01 / U05

BMW / Land Rover EDC15C4 DDE4 (Launch Control 2500 RPM)

BMW EDC17 CP02 / CP09 / C06 / C41 / C45 / C50

BMW EDC16 C31 / C35

PSA / Ford EDC17C10

PSA / Ford 1.6 HDI / 1.6 TDCI EDC16C34

Mercedes EDC16C31

Fiat / Ford / Opel / PSA Marelli MJD 6/8 (1.3 JTD / Multijet / CDTI / HDI)

KIA / Hyundai EDC17C08

Opel / Vauxhall PSG16 Rev Limiter

Opel / Vauxhall EDC16 C9 / C39

Opel / Vauxhall EDC17 C01 / C18 / C19

Opel / Renault / Dacia / Suzuki EDC16 C3 / CP33 / C36

Hardware & Tools Required

This software works with ECU dump files and requires external tools to read/write ECU data.

Common tools used:

• KESS V2 (OBD reading/writing)

• KTAG (bench/boot mode)

• MPPS

• FGTech Galletto

• Autotuner

• Flex (Magic Motorsport)

After reading the ECU file, it is modified using the software and written back to the ECU.

System Requirements

Operating System

Windows 10

Windows 11

Minimum Requirements

4 GB RAM

1 GB free disk space

Recommended

8 GB RAM

SSD storage

What’s Included

Hardcut Limiter and Pops and Bangs software

Installation instructions

Digital download

Disclaimer
